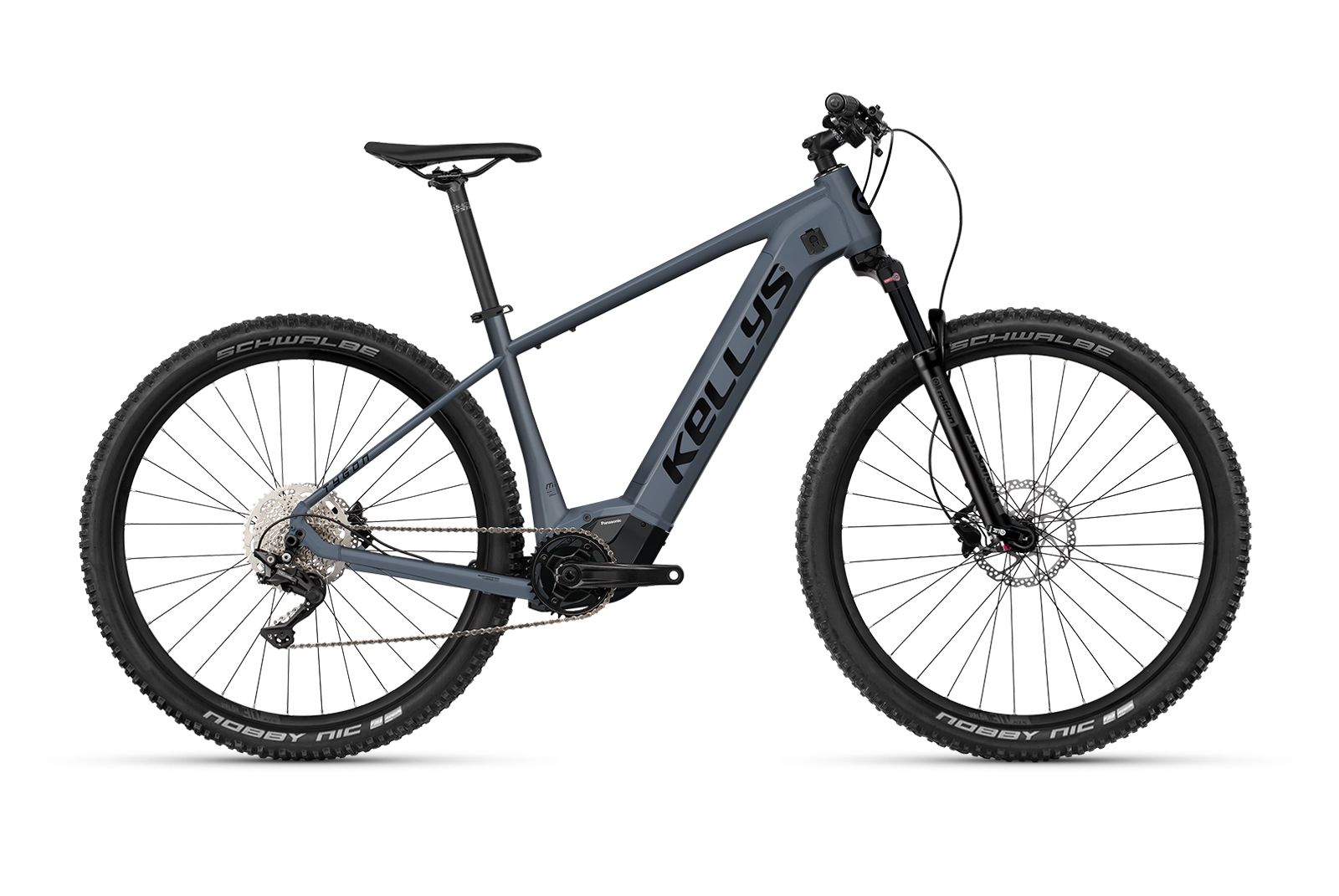

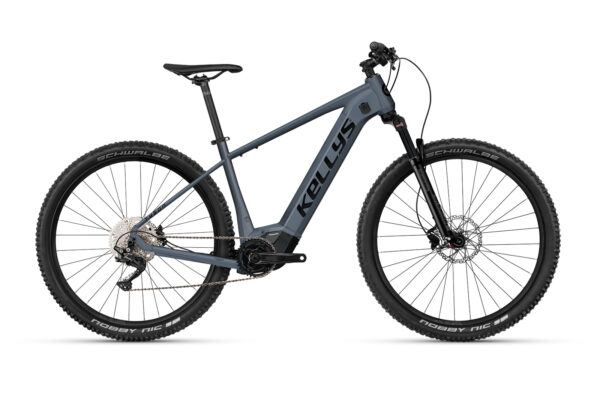

KELLYS Tygon R 50

Rahmen KELLYS TYGON R-series – advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT, 12×148 mm Boost thru axle
Rahmengrössen M / L / XL
Motor PANASONIC GX Ultimate, 95 Nm, 36 V
Schalter PANASONIC
Informations-Display PANASONIC color LCD side display
Akku KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
Gabel SR SUNTOUR Raidon 34 LOR DS (29) Boost, 120 mm, air / 15 mm thru axle
Steuersatz FSA 1.5 semi-integrated
Kurbelgarnitur SAMOX (34T) – length 170 mm
Schalthebel SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
Schaltwerk SHIMANO Deore M5120 (direct mount)
Gänge 10
Kassetenzahnkranz SHIMANO CS-M4100-10 (11-46T)
Kette KMC e10T (116 links)
Bremsen SHIMANO MT200 Hydraulic Disc
Bremsscheiben 180 mm front / 180 mm rear
Bremshebel SHIMANO BL-MT200
Naben SHIMANO MT400-B Disc Center Lock (15×110 mm / 12×148 mm / 32 holes)
Steckachse SR SUNTOUR 15×110 mm front / NOVATEC 12×181 mm rear
Felgen KLS Valor 3 Disc 622×30 (32 holes)
Speichen stainless steel black
Reifen SCHWALBE Nobby Nic Performance 60-622 (29×2.35) ADDIX, folding
Vorbau KLS Active – diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm
Lenker KLS Active RiseBar – diam 31.8 mm / rise 18 mm / width 720 mm
Griffe KLS Poison OneLockon
Sattelstütze KLS Active – diam 30.9 mm / length 350 mm
Sattel SELLE ROYAL Vivo
Pedale plastic
